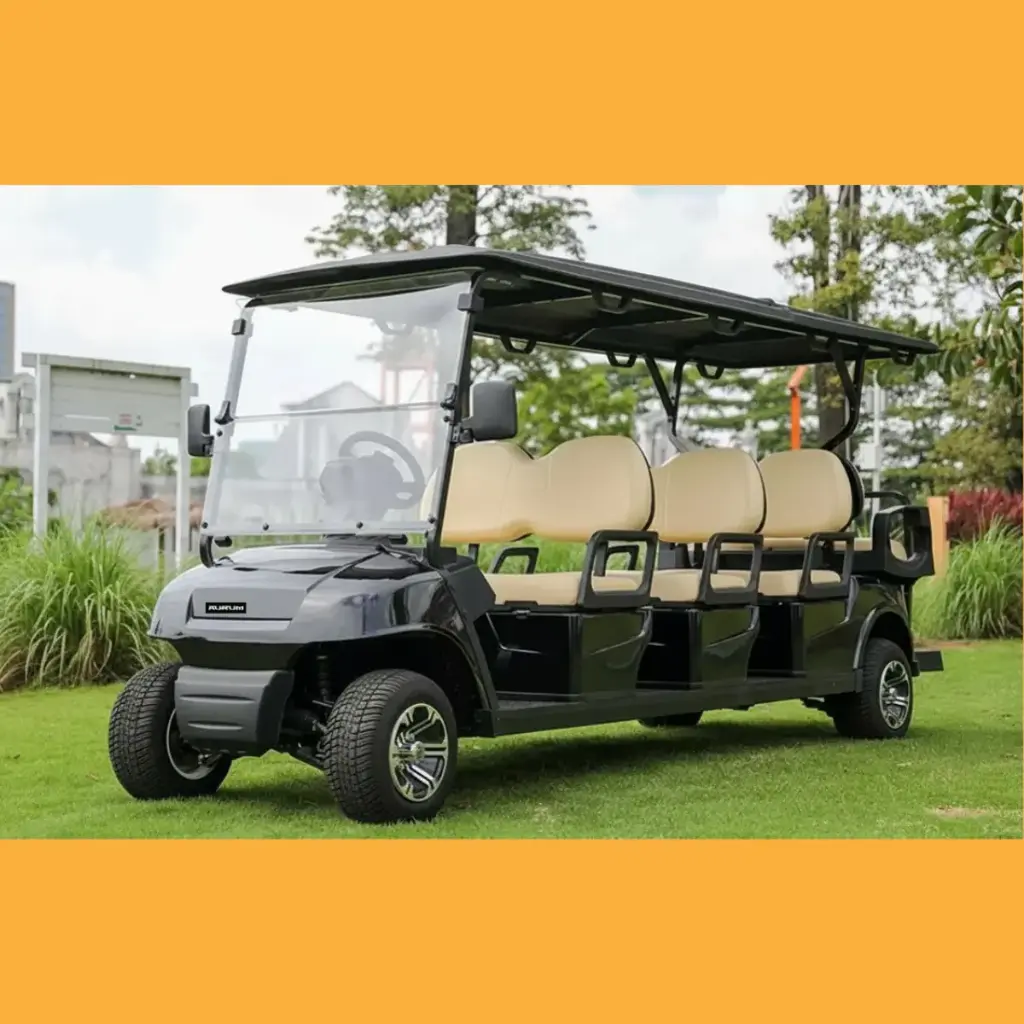

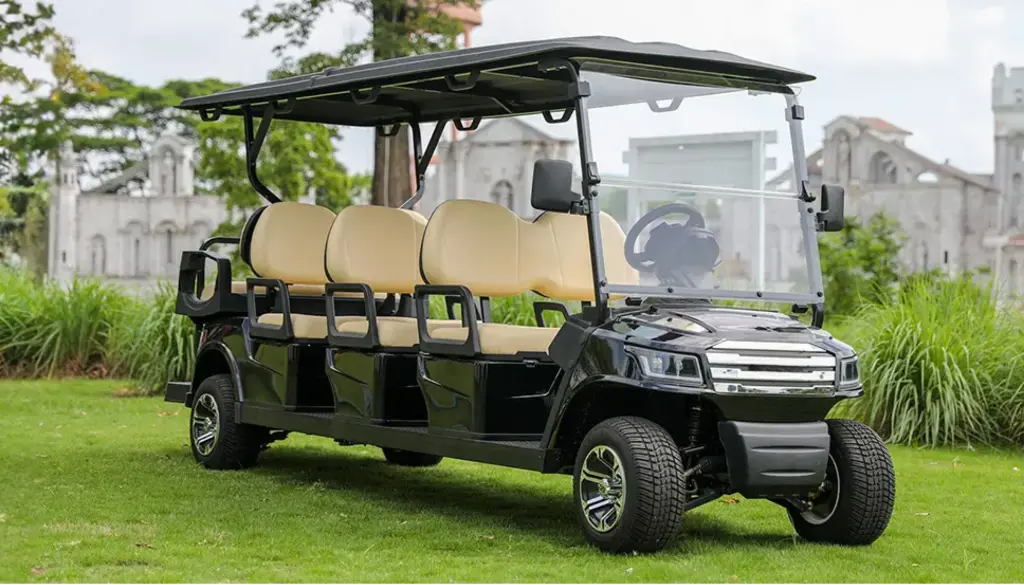

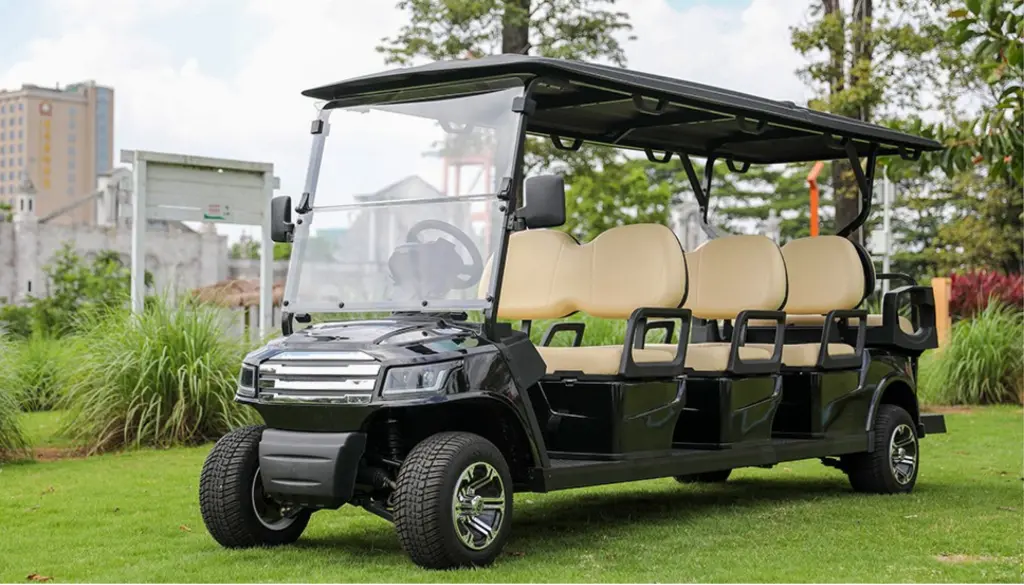

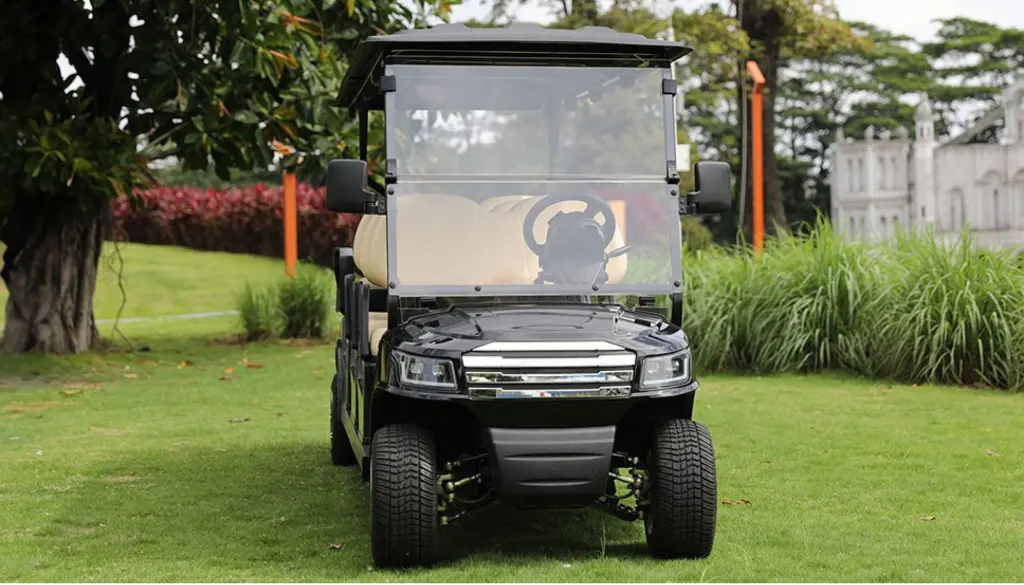

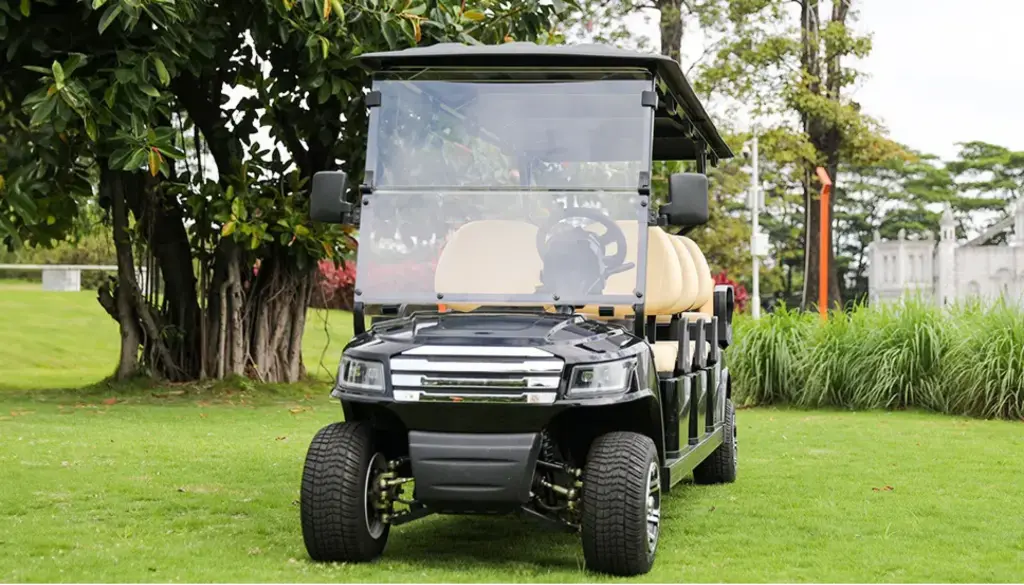

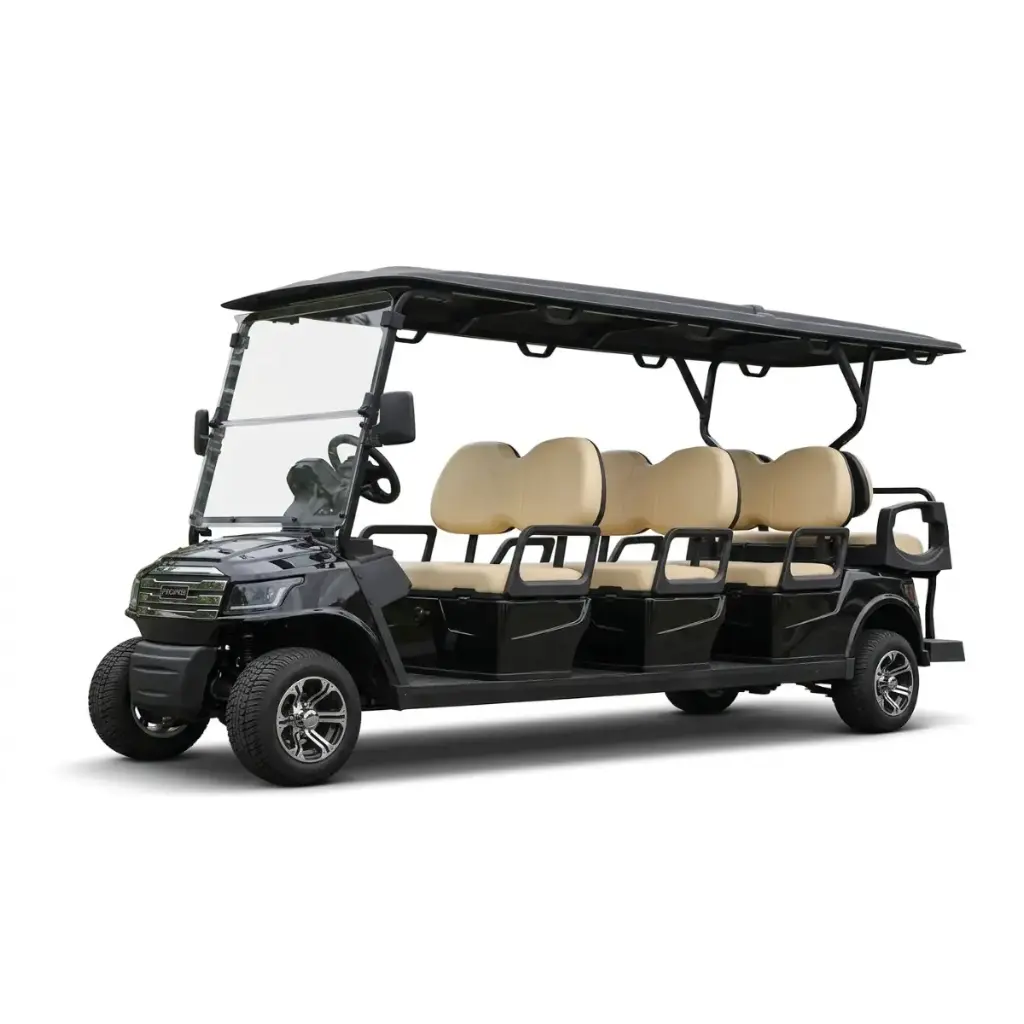

"Fairway 6" Golf Cart
| Powertrain: 48V 5kW Motor + 51.2V 125Ah Lithium Battery |
| Seats: 6 Seats |
Specifications
|
Parameter |
Specification |
|
Length × Width × Height |
4055 × 1145 × 1810 mm |
|
Vehicle Weight (with battery) |
698 kg |
|
Braking Distance |
< 5.4 m |
|
Rated Capacity |
6 persons |
|
Minimum Turning Radius |
5.5 m |
|
Energy Consumption per 100 km |
8 kWh |
|
Maximum Speed |
18–45 km/h (adjustable) |
|
Wheel Track |
Front 900 mm / Rear 1005 mm |
|
Cargo Box Size |
N/A |
|
Driving Range |
70–80 km (flat road) |
|
Brake Stability |
1.6 m |
|
Cargo Load |
N/A |
|
Maximum Climbing Ability |
30% |
|
Minimum Ground Clearance |
Main beam 225 mm / Rear axle 125 mm |
|
Hill-Holding Performance |
30% |
|
Wheelbase |
3305 mm |
Electrical System
- Controller: AC controller NAVITAS 600A
- Battery: Maintenance free lithium battery 51.2V, 125AH
- Motor: 48V/5KW AC asynchronous motor
- Charger: Intelligent on-board charger 56.8V/20A, charging time < 8 hours (at 80% discharge)
- DC Converter: High-power non-isolated DC-DC 48V/12V – 300W
Body Configuration
- Front Windshield & Wiper: Acrylic, optional tempered glass + wiper
- Roof: One-piece injection-molded roof made of automotive-grade PP material
- Seats: Ergonomic seats with leather covering
- Floor: PP + fiber anti-slip floor, high-strength structure, corrosion-resistant and aging-resistant
- Body: Front hood, seat bucket, and body panels made of automotive-grade PP injection; matte black aluminum roof pillars
- Rearview Mirrors: One manually adjustable, foldable mirror on each side
- Lighting & Warning Signals: LED front combination lights (low beam, high beam, turn signal, daytime running light, position light); LED rear tail lights (brake light, position light, turn signal) ; snail horn, reversing buzzer
- Dashboard: Injection-molded dashboard with electric lock switch, single-arm combination switch, gear switch, cup holder; dual USB ports, 12V power outlet. LCD electric vehicle instrument cluster (including fault diagnosis display), optional reversing camera
- Steering System: Dual rack-and-pinion steering system with automatic gap compensation
- Brake System: Dual-circuit four-wheel hydraulic brakes (cylinder diameter 50mm), four-wheel disc brakes + electronic parking brake
- Front Suspension: Double wishbone independent front suspension + coil spring + hydraulic shock absorber
- Rear Suspension: Integrated rear axle, ratio 16:2, coil spring + hydraulic shock absorber + rear stabilizer bar
- Tire Diameter: 205/50-10 (wheel diameter 455mm), steel rim
