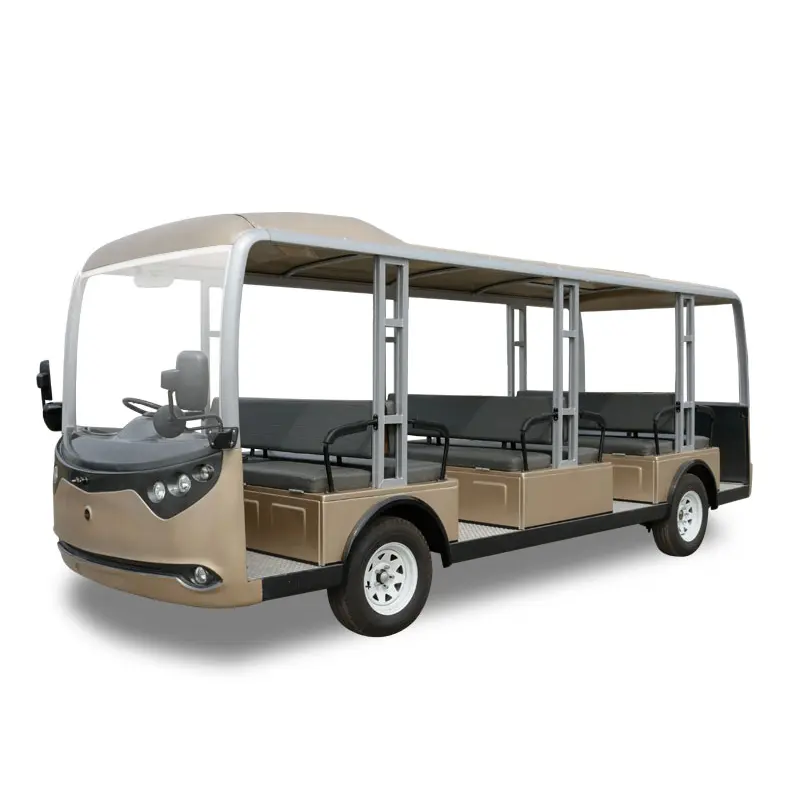

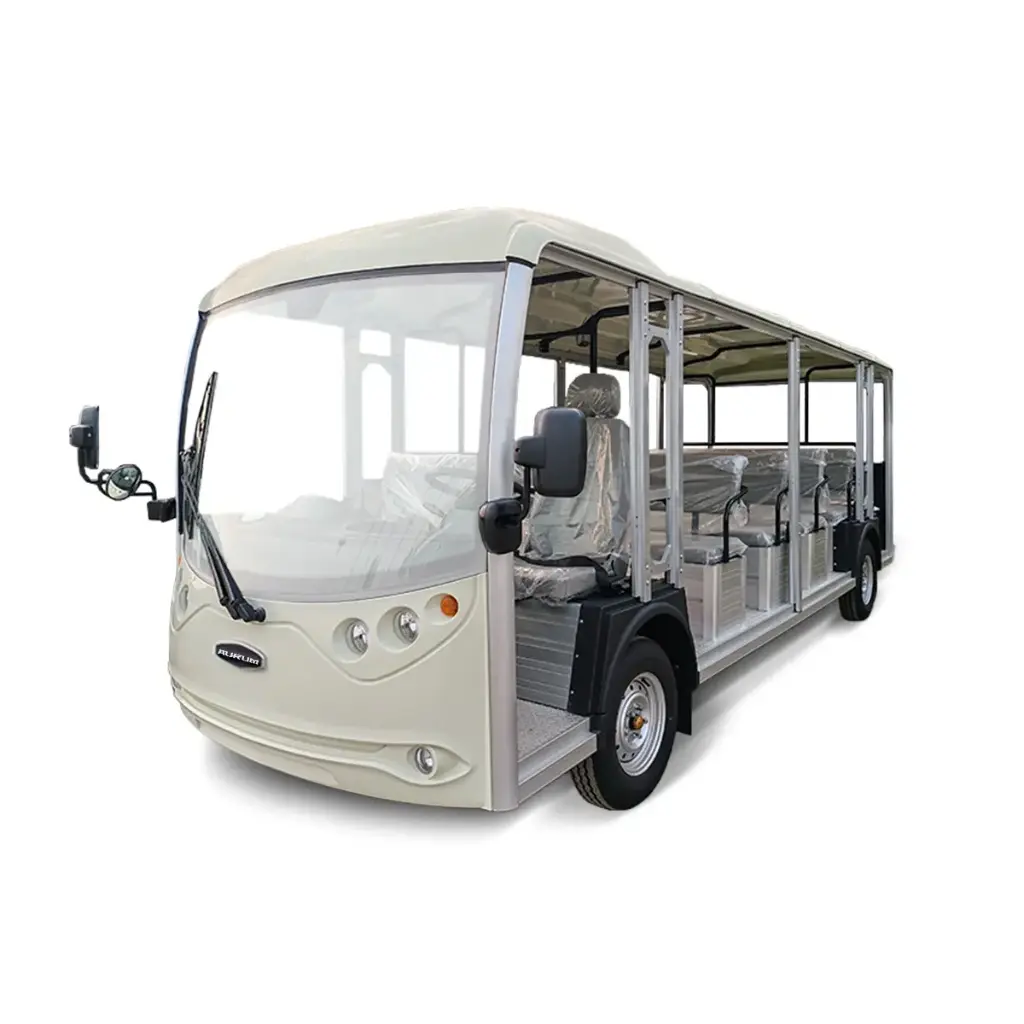

"Transit T23" Shuttle Bus

"Transit T23" Shuttle Bus

https://www.aurum-vehicles.com/web/image/product.template/2113/image_1920?unique=432d476
Built for higher-capacity transport, this 14-seater electric shuttle delivers reliable, low-noise operation with a dependable electric power system and solid driving range. Its reinforced steel and aluminum structure ensures durability, while spacious, ergonomic seating provides comfort for larger groups. Featuring stable suspension, responsive steering, and a comprehensive braking system, it is well-suited for resorts, campuses, and commercial mobility needs.

USD 15,999.00 15999.0 USD USD 15,999.00

Not Available For Sale

  • Powertrain
  • Seats

This combination does not exist.

Contact Us
Powertrain: 72V 15kW Motor + 73.6V 315Ah Lithium Battery
Seats: 23 Seats

Terms and Conditions
Prices are FOB Guangzhou
Production Lead Time: 20-30 Business Days
All images are for reference only and may show accessories that need to be purchased extra

Body Configuration

  • Windshield & Wiper: Car laminated glass + windscreen wiper
  • Roof: Automotive PP material injection molding
  • Floor: Aluminium pattern non-slip floor
  • Body: Front cover, bucket seats and driving frame are made of PP material; High strength structural steel + high standard aluminum alloy welding molding
  • Rear Mirror: Hand operated, foldable outer rear view mirror
  • Lights & Signals:  Near/high beam lights, turn signals, double flashing lights, fog lights, reversing lights, rear taillights, snail horns, reversing voice horns
  • Dashboard:  Injection molding instrument, LCD combination instrument, electric lock switch, combination switch, car multimedia player, double flash switch, 12V power interface, USB power interface, large mushroom head power switch
  • Steering:  Two-way rack and pinion steering system, automatic gap compensation function + electric power steering
  • Breaking:  Front disc rear hub four-wheel hydraulic brake + handbrake parking + electric vacuum power brake system
  • Front Suspension: Independent suspension; Double swing arm + torsion bar + coil spring + cylinder type hydraulic shock absorption
  • Rear Suspension: Integral rear axle, speed ratio 18:1, leaf spring + cylinder type hydraulic shock absorption
  • Tires/ Wheels: 195R14C vacuum tire (diameter 660mm); 14 inch steel rim

Technical Parameter

  • Overall Size (L×W×H): 5885 × 1830 × 2240 mm
  • Minimum Turning Radius: 7.5 m
  • Max Climbing Ability (Loaded): 15%
  • Braking Distance: <6 m
  • Min. Ground Clearance: 165 mm
  • Front Wheel Tread: 1530 mm
  • Rear Wheel Tread: 1590 mm
  • Wheelbase: 3600 mm

15 kW

Motor

30 KM/h

max. Speed

23

Passengers

up to 125 KM

Range when fully charged
