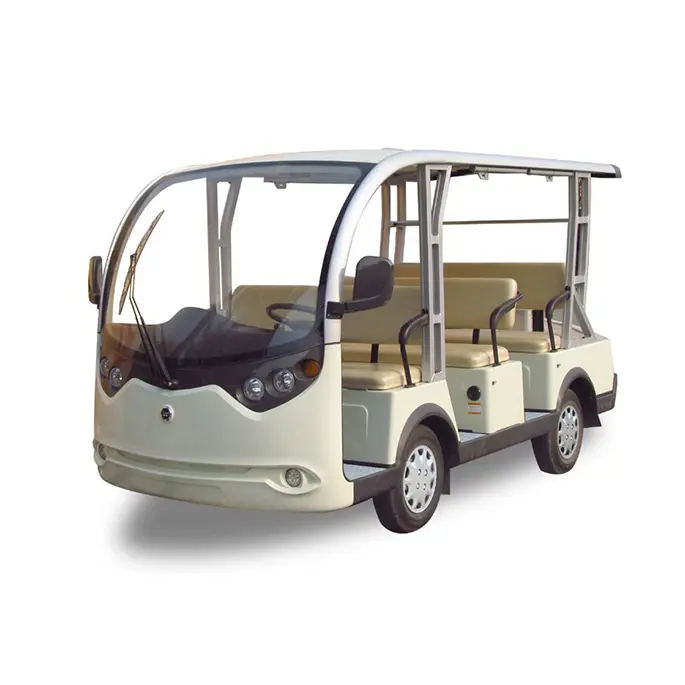

"Transit T8" Shuttle Bus
This 8-seater electric shuttle offers smooth, quiet performance with a reliable electric drivetrain and extended range. Built with a high-strength steel and aluminum frame, it features durable body panels and comfortable ergonomic seating. With hydraulic brakes, independent suspension, and full lighting, it is ideal for resorts, campuses, and commercial transport.
| Seats: 8 Seats |
Body Configuration
- Windshield & Wiper: Car laminated glass + windscreen wiper
- Roof: Automotive PP material injection molding
- Floor: Aluminium pattern non-slip floor
- Body: Front cover, bucket seats and driving frame are made of PP material; High strength structural steel + high standard aluminum alloy welding molding
- Rear Mirror: Hand operated, foldable outer rear view mirror
- Lights & Signals: Front light, turn signal, fog light, reverse light, rear light, snail horn, reversing voice horn
- Dashboard: Injection molding dashboard, combination of instrument, instrument indicator light, electric lock switch, combination switch, multimedia vehicle player, fog light switch
- Steering: Two-way rack and pinion steering system, automatic clearance compensation function; (Optional electric power steering)
- Breaking: Front disc and rear drum, four wheel hydraulic brake + handbrake parking; (Optional electric vacuum assist brake system)
- Front Suspension: McPherson Independent suspension, helical spring +cylinder hydraulic shock absorption
- Rear Suspension: Integral type transaxle, gear ratio 16:1, splate spring, cylinder hydraulic shock absorption
- Tires/ Wheels: 165/70R13C tubeless tyre (diameter: 560mm), 13 inches Iron rim (Optional aluminum rim）
Technical Parameter
- Overall Size (L×W×H): 3920 × 1500 × 2040 mm
- Minimum Turning Radius: 5.6 m
- Max Climbing Ability (Loaded): 20%
- Braking Distance: <6 m
- Min. Ground Clearance: 155 mm
- Front Wheel Tread: 1300 mm
- Rear Wheel Tread: 1330 mm
- Wheelbase: 1855 mm
7.5 kW
Motor
30 KM/h
Max. Speed
8
Passengers
up to 140 KM
Range when fully charged
