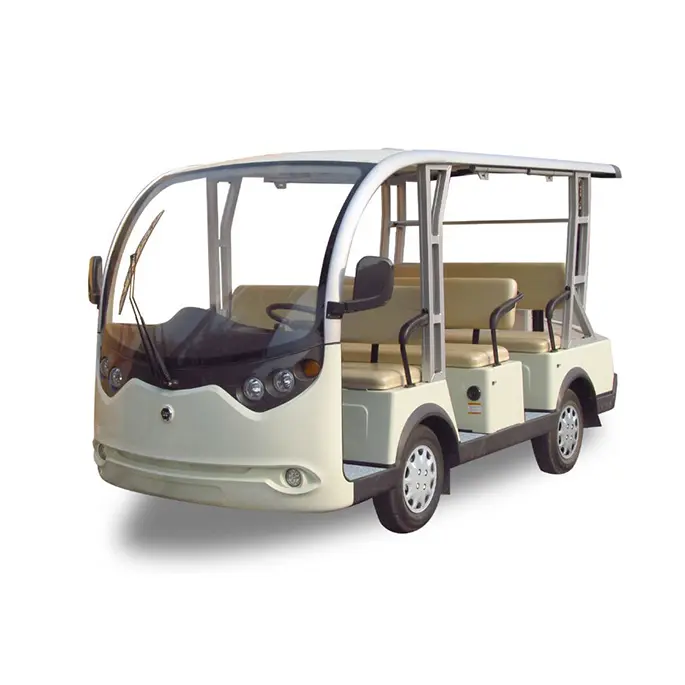

"Transit T8" Shuttle Bus
| Motor Controller: Japanese Tech controller |
| Lighting: Front light, turn signal, fog light, reverse light, rear light, snail horn, reversing voice horn |
| Dashboard / Controls: Injection molding dashboard, combination instrument, instrument indicator light, electric lock switch, combination switch, multimedia vehicle player, fog light switch |
| Audio System: Multimedia vehicle player |
| Tires: 165/70R13C tubeless tyres (diameter: 560mm), 13-inch iron rim (optional aluminum rim) |
| Steering & Brakes: Two-way rack and pinion steering system, automatic clearance compensation; front disc and rear drum, four-wheel hydraulic brake with handbrake parking (optional electric vacuum assist brake system) |
Key Features and Technical Specifications
- System: 72V 7.5KW AC System
- Motor: AQHT7.5-4004C (7.5KW AC Motor)
- Battery Type: Maintenance-free battery, 6V×12pcs (lead acid battery)
- Controller: Aurum Controller
- Charger: Onboard charger 72V, Input 220V/110V
- Passenger Capacity: 8
- Range (Loaded): ≥ 60km (based on flat road at 20km/h)
- Max Speed: 30km/h
- Minimum Turning Radius: 5m
- Max Climbing Ability (Loaded): 25%
- Max Movement After Brake: <$4.8m
- Kerb Mass: 1130 kg
- Gross Mass: 1700 kg
- Overall Size (L×W×H): 3920 × 1500 × 2040 mm
- Min. Ground Clearance: 130 mm
- Front Wheel Tread: 1300 mm
- Rear Wheel Tread: 1325 mm
- Wheelbase: 1855 mm
- Many Color Options
7.5 kW
Motor
XY
Maintenance free Lithium Battery
8
Passengers
60 KM
Range when fully charged
